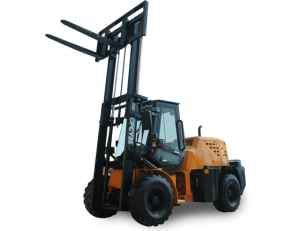

| CPCY 35 | |
| Load capacity (kg) | 3500 |
| Lifting height(mm) | 3000 |
| Load Center | 500 |
| 长（With pallet fork）(mm) | 3655 |
| width(mm) | 1700 |
| height(mm) | 2150 |
| Inclination angle | 6/12 |
| Wheelbase(mm) | 2080 |
| Wheel tread | 1170 |
| Tires | 12-16.5 (12PR) |
| Dead weight(kg) | 4230 |
| Voltage | 24 V ( 80ahx2 ) |
| Engine | XINCHAI |
| Model | C490 BPG |
| Engine power(kw) | 40 |
| Transmission | 2F/2R |
| Max speed(km/H) | 28 |
| Climbing ability% | 22 |
| Pallet fork(mm) | 1220*125*50 |
| Min. ground clearance (mm) | 260 |
| Turning radius(mm) | 4760 |
