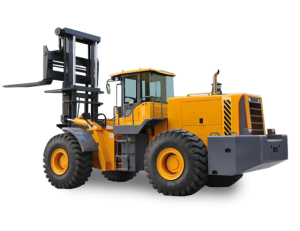

| CPCY 200 | |
| Load capacity (kg) | 20000 |
| Lifting height(mm) | 3000 |
| Load Center | 800 |
| length（With pallet fork）(mm) | 7400 |
| width(mm) | 3200 |
| height(mm) | 3520 |
| Inclination angle | 6/12 |
| Wheelbase(mm) | 3950 |
| Wheel tread | 2400 |
| Tires | 26.5-25 (20 PR) |
| Dead weight (kg) | 27000 |
| Voltage | 24 V (120ahx2 ) |
| Engine | WEICHAI |
| Model | WP10G240E343 |
| Engine power(kw) | 178 |
| Transmission | 4F/4R |
| Max speed(km/H) | 38 |
| Climbing ability % | 20 |
| Pallet fork(mm) | 2400*260*100 |
| Min. ground clearance (mm) | 490 |
| Turning radius(mm) | / |
